Basic Information
Model NO.MF-LD-G200W
MaterialDie Casted Aluminum
Power30W-200W
IP RatingIP66
Input VoltageAC100-277 50/60Hz
LED ChipsLu-Mileds
Efficacy150lm/W
Warranty5 Years
Lifespan60,000hrs
IK RatingIK08

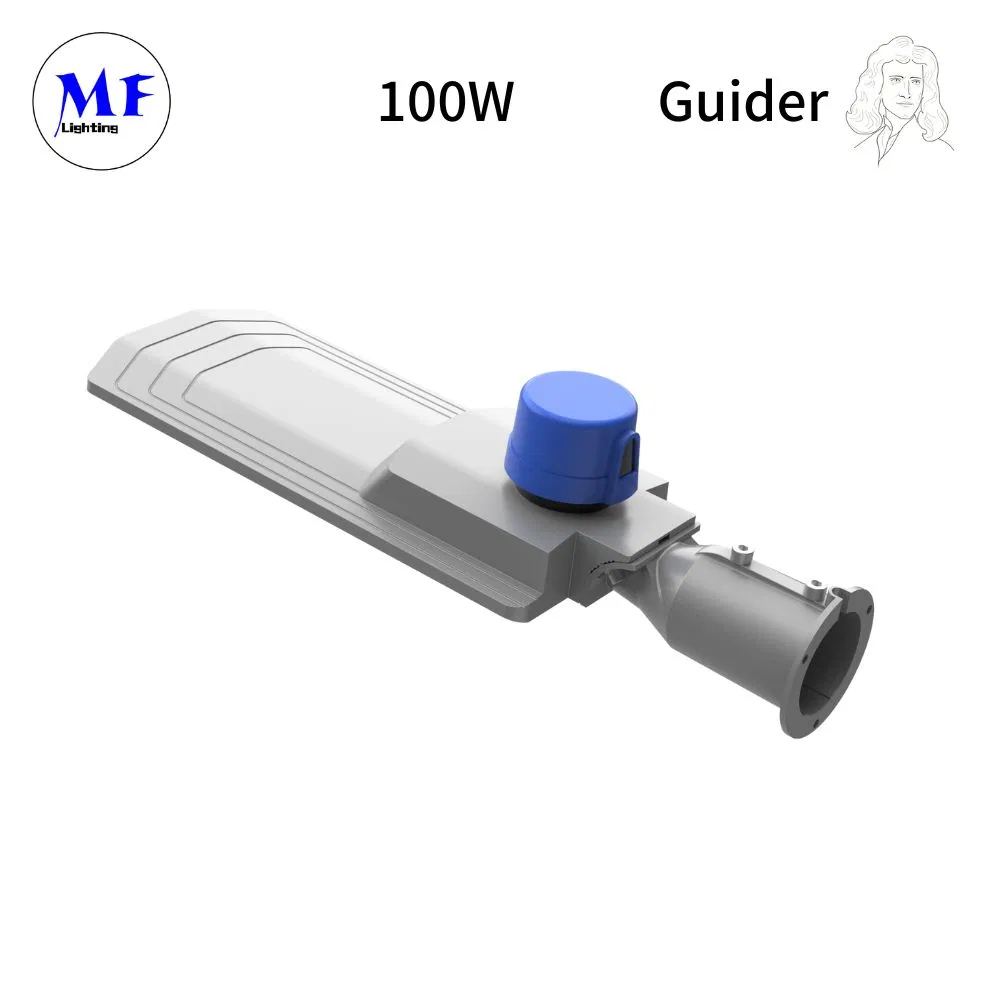

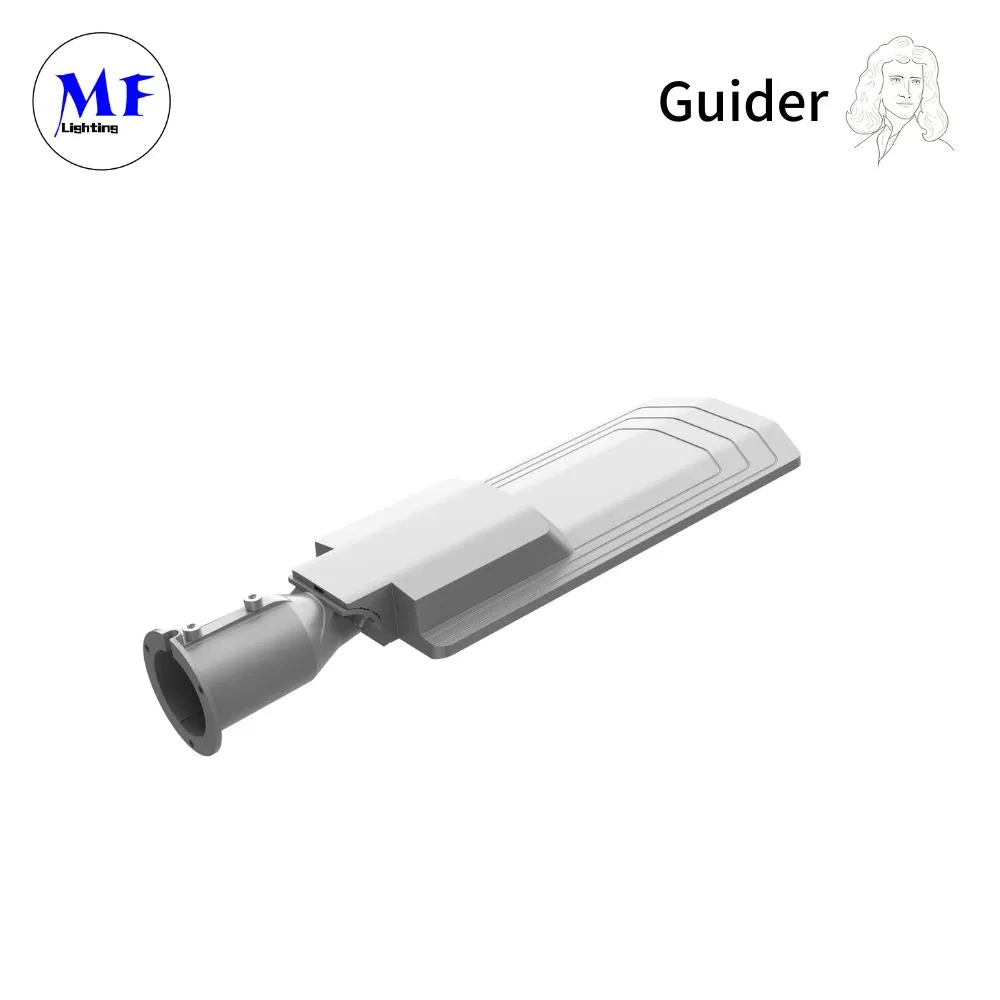

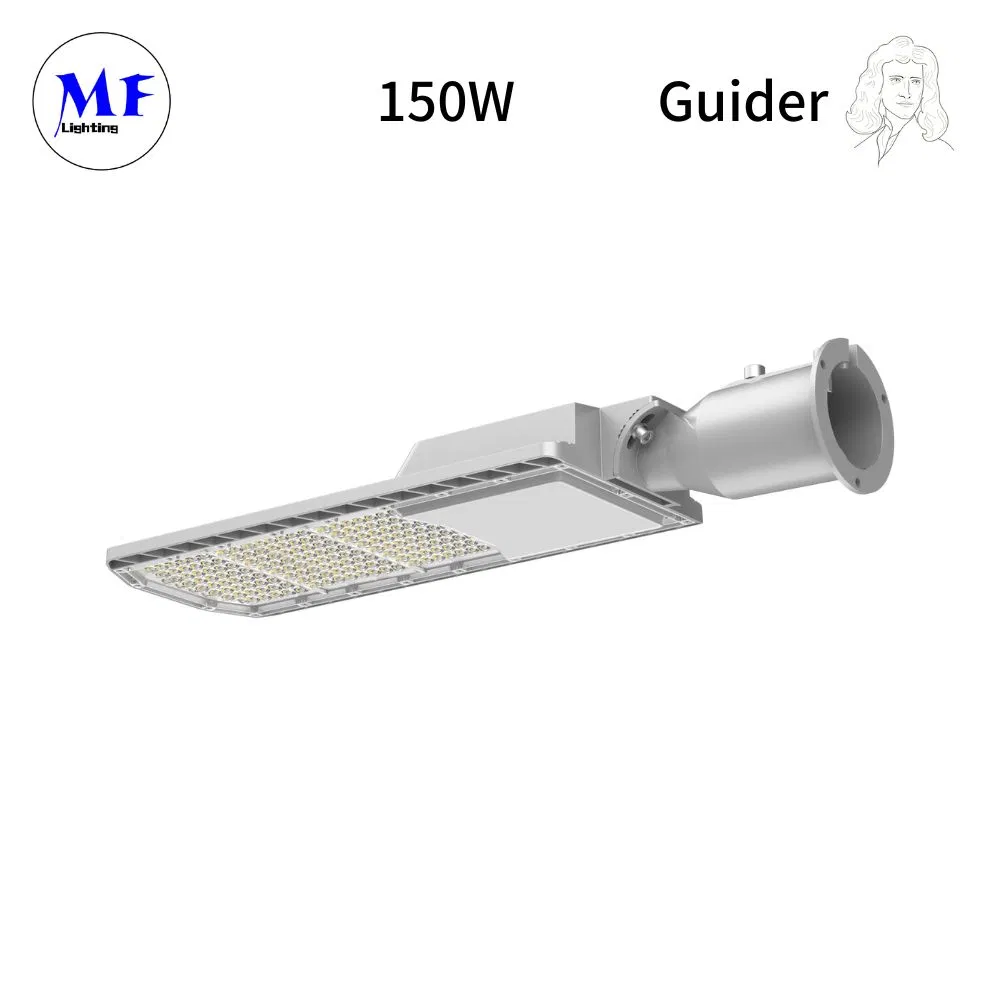

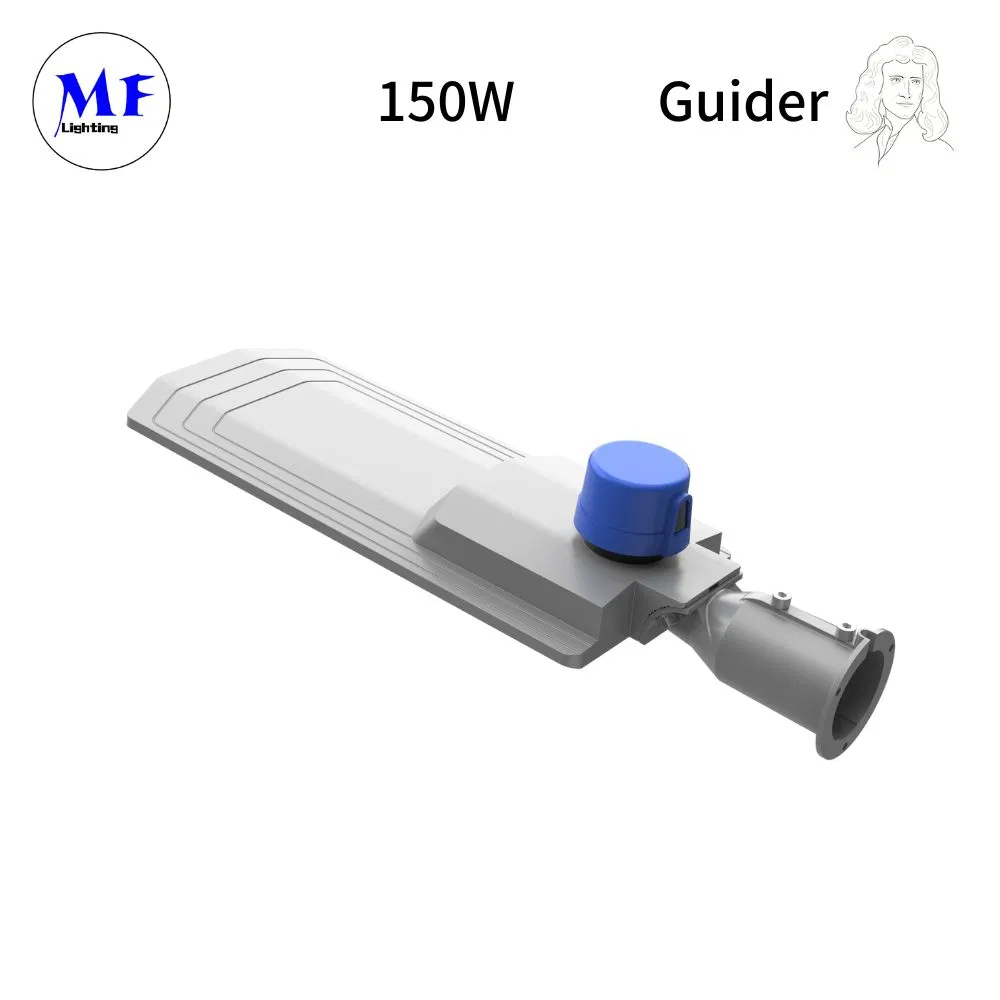

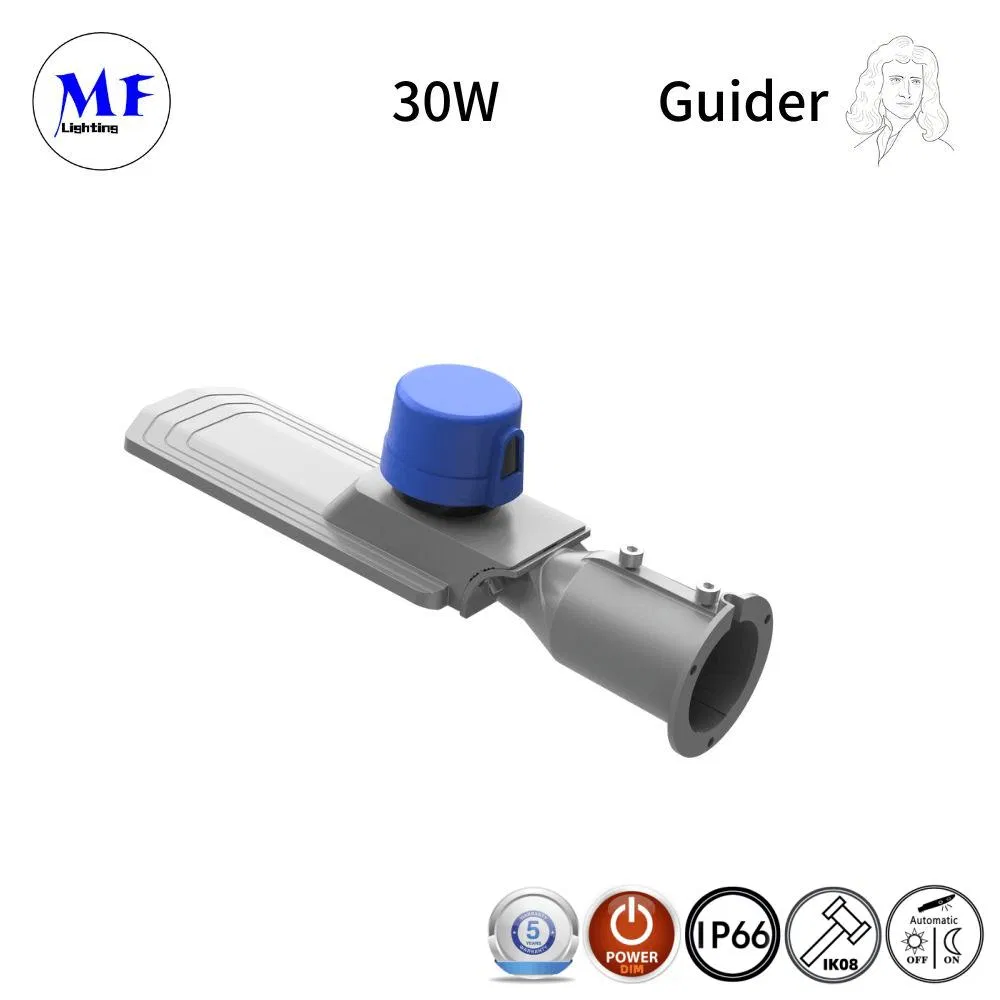

Dimmable Photocell Sensor Street Lighting
Featuring chips for high brightness, low light decay, and long life-time. Equipped with international driver brands, overheat protection, high conversion efficiency, and surge protection (1-10V, DALI2.0).
Quick Details
- High Performance Chips: High brightness, low light decay, and extended life-time.
- Advanced Driving: Overheat protection, high efficiency, high PF, and surge protection (1-10V, DALI2.0).
- Thermal Management: ADC12 die-casting technology for excellent heat dissipation, reducing chip temperature.
- Durable Optics: UV resistant PC lens with 94% light transmittance, IK08 rated.
- Wide Operation Range: Reliable performance from -35°C to +50°C.
Technical Specifications
| Model No. |
MF-LD-G30W |
MF-LD-G50W |
MF-LD-G100W |
MF-LD-G150W |
MF-LD-G200W |
| Rated Power |
30W |
50W |
100W |
150W |
200W |
| Luminous Flux |
4200lm±5% |
7000lm±5% |
14000lm±5% |
21000lm±5% |
28000lm±5% |
| Qty of LED |
56PCS |
96PCS |
192PCS |
270PCS |
368PCS |
| Size (mm) |
425*108*96 |
477*138*96 |
566*177*96 |
650*210*96 |
719*244*96 |
| IP/IK Rating |
IP66 / IK08 |
| CCT |
3000-6500K |
| Beam Angle |
70*140° |

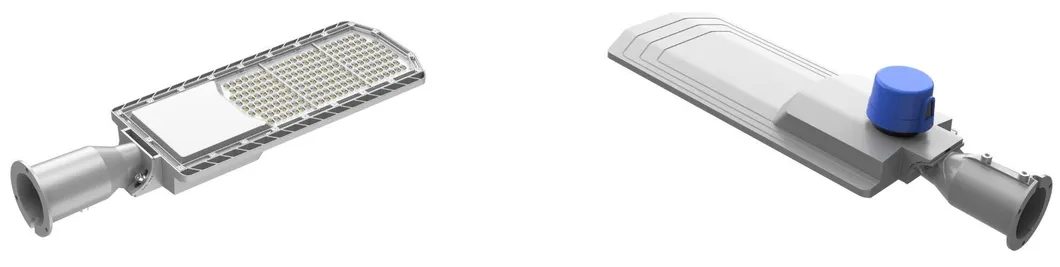

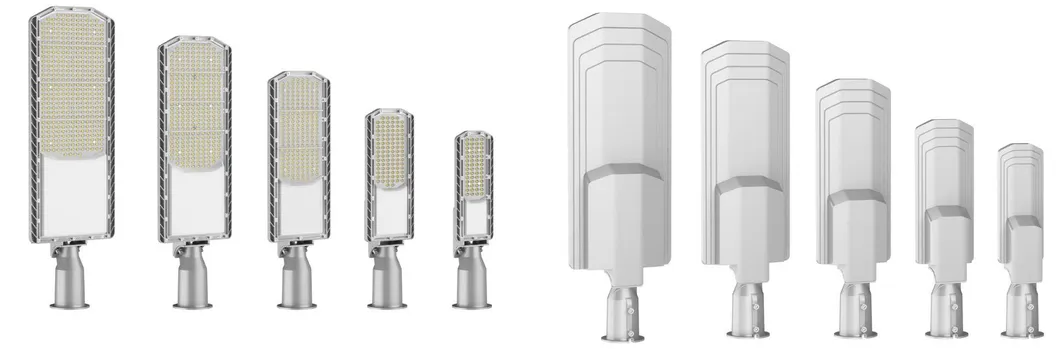

Detailed Product View

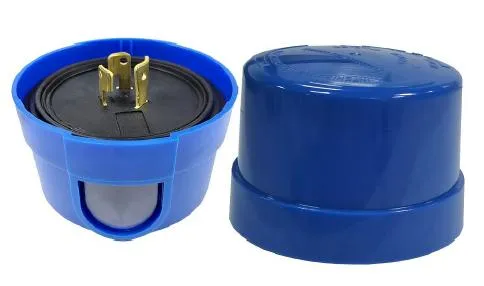

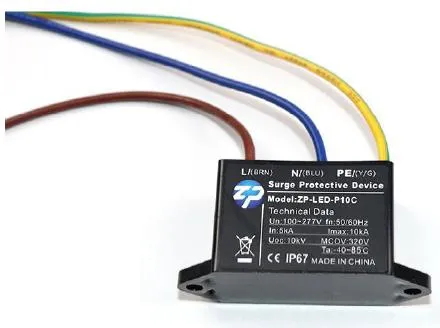

10KV Lighting Arrestor & Wire Photocell

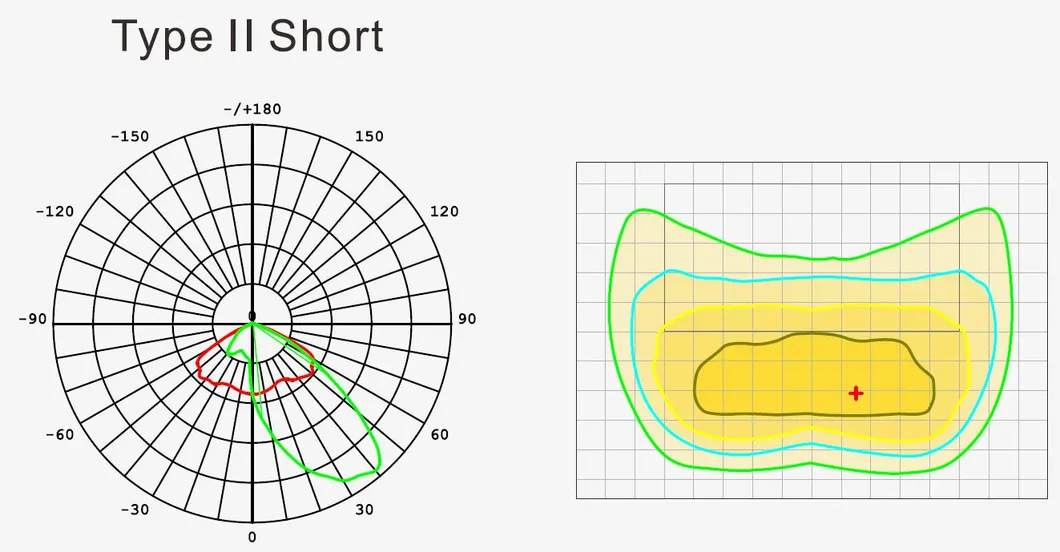

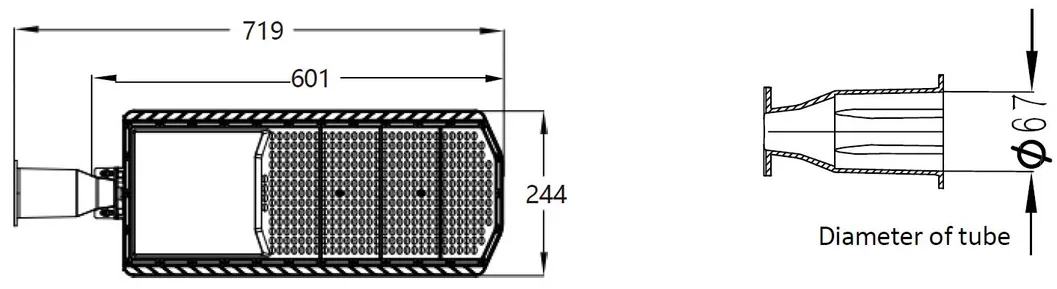

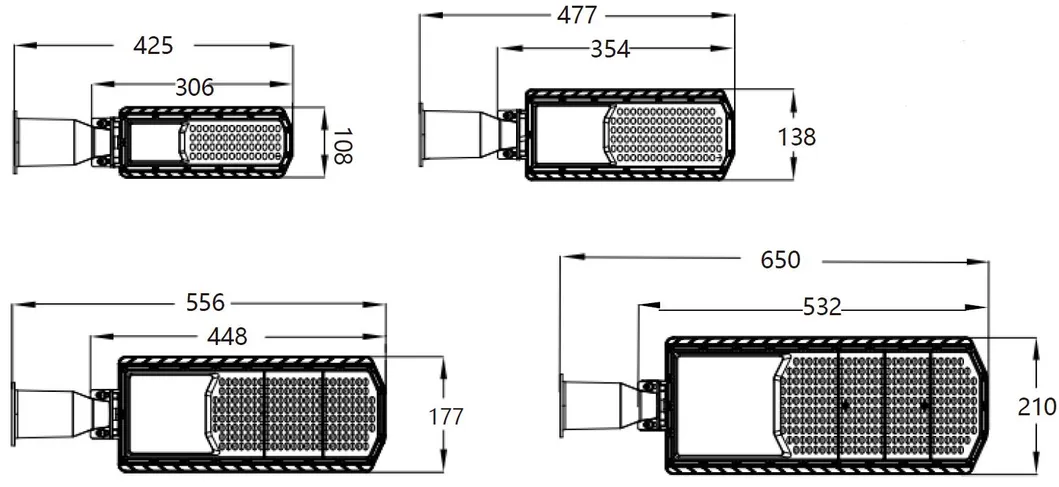

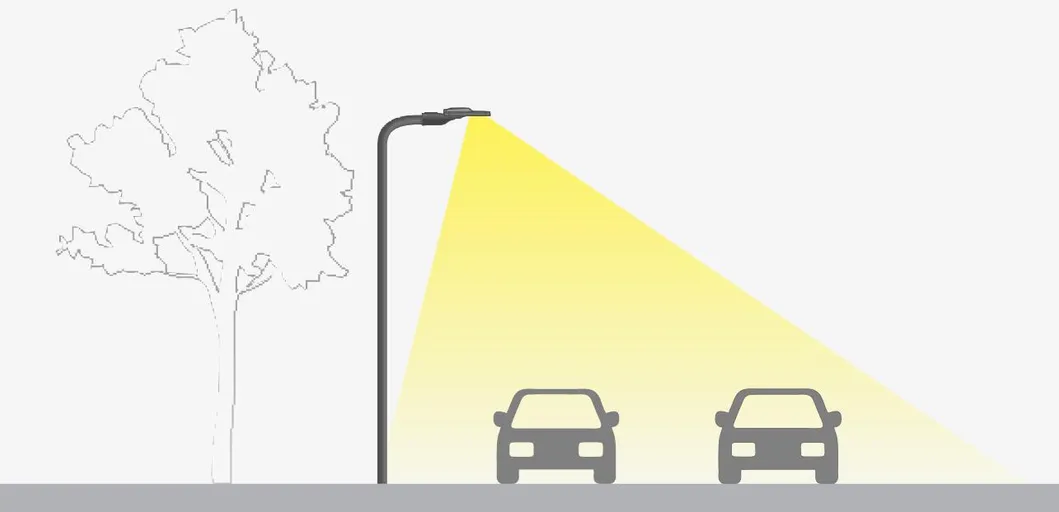

Photometry & Dimensions

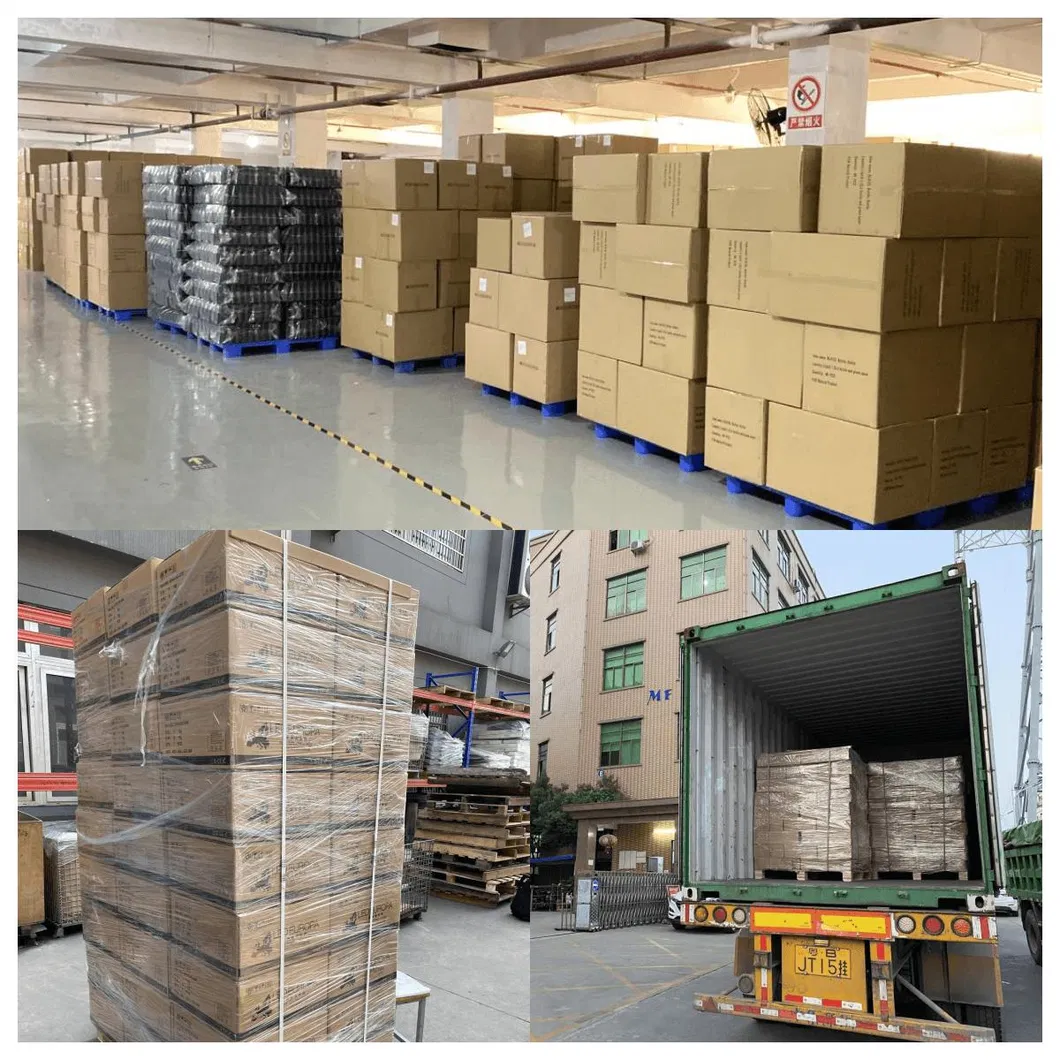

Packaging & Shipping

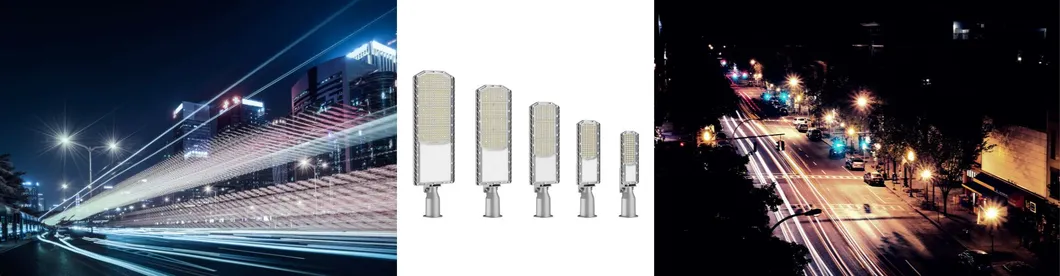

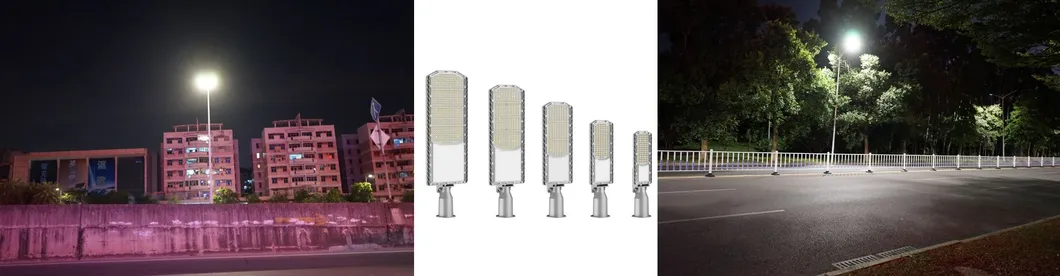

Applications
LED street lights are ideal for city roads, highways, parking lots, plazas, parks, campuses, and sports venues. They provide safe, reliable, and energy-efficient nighttime environments.

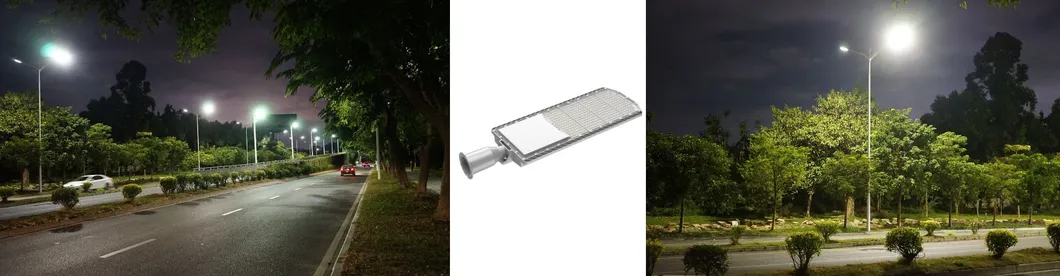

Key Advantages
- Energy Efficiency: Consumes up to 50% less energy than traditional lamps.
- Long Lifespan: Lasts up to 10 times longer than conventional lighting.
- Superior Quality: Better visibility and higher light quality for safety.
- Eco-Friendly: No toxic materials; reduces carbon footprint.
- Low Maintenance: Durable design reduces replacement costs.
- Smart Ready: Easily integrates with dimming and smart city sensors.
- Instant On: No warm-up time required.
Frequently Asked Questions
What is the lifespan of these LED street lights?
The lights have a lifespan of up to 50,000 to 60,000 hours, significantly reducing maintenance and replacement costs.
Are these lights waterproof for outdoor use?
Yes, they are IP66 rated, meaning they are fully protected against dust and powerful water jets, making them ideal for harsh outdoor environments.
What dimming options are available?
Our lights support advanced dimming protocols including 1-10V and DALI 2.0, allowing for smart energy management.
What is the advantage of the ADC12 die-casting?
ADC12 die-casting provides excellent thermal management, balancing internal and external temperatures to protect the LED chips and ensure stability.
Does it come with surge protection?
Yes, the units are equipped with 10KV lightning arrestors and surge protection to safeguard against voltage spikes.
What is the warranty period for this product?
We offer a 5-year warranty on our LED street light series, ensuring long-term reliability for your projects.
